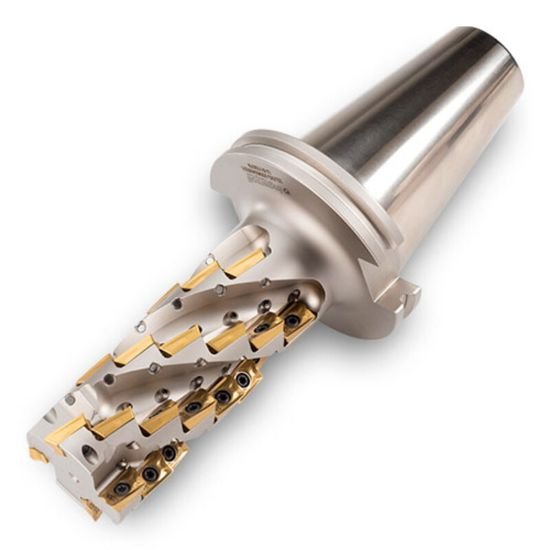

Picture of Ingersoll 22J3G-2004548R01 Milling Cutter 90.0°, Corn Cob 2.000 CAT50 4 Flute Coolant 2.8 Max DOC 8.500 OAL

Ingersoll 22J3G-2004548R01 Milling Cutter 90.0°, Corn Cob 2.000 CAT50 4 Flute Coolant 2.8 Max DOC 8.500 OAL

Part Number: ING2922337 ISO: 22J3G-2004548R01 ANSI:22J3G-2004548R01
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008605
Vendor: Sussex Tool and Supply
$2,464.00

Description

INGERSOLL 2922337 Parallelogram 90.0°, Corn Cob Machine Taper CAT50 Positive 2.0000 50.80MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Corn Cob
Coolant Thru Thru Coolant
Type Of Tool Machine Taper
Insert/Tool TOOL
Cut Type Roughing
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 8.5000 215.90MM
Flutes/Inserts 4
Tool Dia 2.0000 50.80MM
Insert Size Ic 17
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 2.0000 50.80MM
Depth Of Cut Max 2.8000
Max Ramp Angle 4.00°
Materials & Finish
Tool Material Steel
