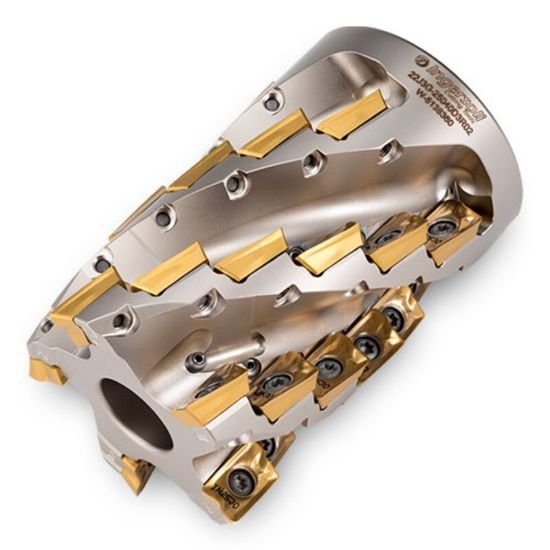

Picture of Ingersoll 22J3G-20041D3R02 Milling Cutter 90.0°, Corn Cob 2.000 Cylindrical1.0000 4 Flute Coolant 2.8 Max DOC 4.170 OAL

Ingersoll 22J3G-20041D3R02 Milling Cutter 90.0°, Corn Cob 2.000 Cylindrical1.0000 4 Flute Coolant 2.8 Max DOC 4.170 OAL

Part Number: ING2922282 ISO: 22J3G-20041D3R02 ANSI:22J3G-20041D3R02
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008603
Vendor: Sussex Tool and Supply
$1,456.00

Description

INGERSOLL 2922282 Parallelogram 90.0°, Corn Cob End Mill Cylindrical 1.0000 Positive 2.0000 50.80MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Corn Cob
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 4.1700 105.92MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 4
Tool Dia 2.0000 50.80MM
Insert Size Ic 17
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 2.0000 50.80MM
Depth Of Cut Max 2.8000
Max Ramp Angle 4.00°
Materials & Finish
Tool Material Steel
