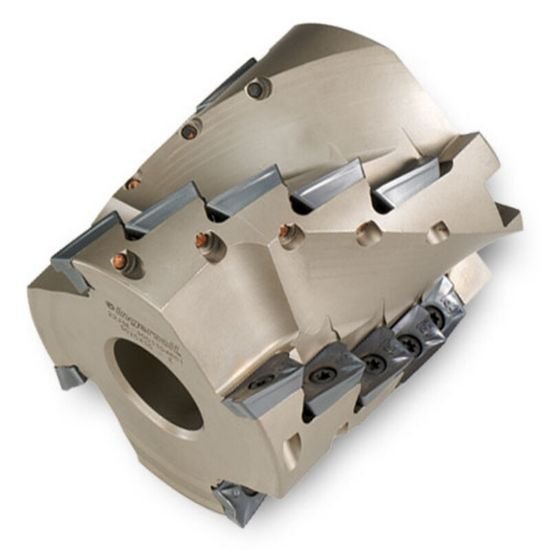

Picture of Ingersoll 22J3E-40044D5R01 Milling Cutter 90.0°, Corn Cob 4.000 Cylindrical1.5000 5 Flute 3.78 Max DOC 4.470 OAL

Ingersoll 22J3E-40044D5R01 Milling Cutter 90.0°, Corn Cob 4.000 Cylindrical1.5000 5 Flute 3.78 Max DOC 4.470 OAL

Part Number: ING3040637 ISO: 22J3E-40044D5R01 ANSI:22J3E-40044D5R01
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1009499
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

INGERSOLL 3040637 Parallelogram 90.0°, Corn Cob End Mill Cylindrical 1.5000 Positive 4.0000 101.60MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Corn Cob
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 4.4700 113.54MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Flutes/Inserts 5
Tool Dia 4.0000 101.60MM
Insert Size Ic 18
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 4.0000 101.60MM
Depth Of Cut Max 3.7800
Materials & Finish
Tool Material Steel
