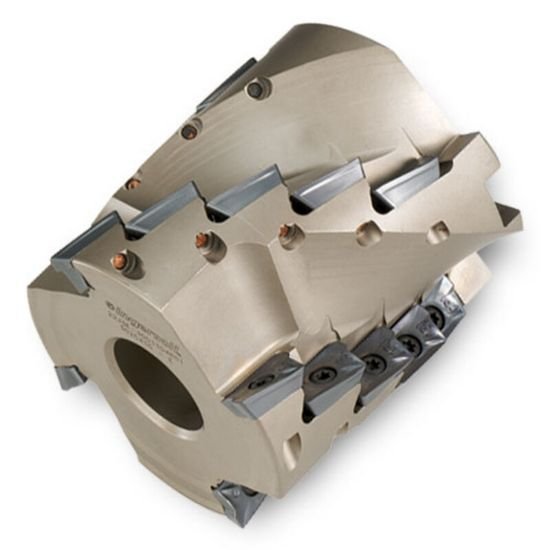

Picture of Ingersoll 22J3E-20022D1R01 Milling Cutter 90.0°, Corn Cob 2.000 Weldon 0.7500 4 Flute Coolant 1.74 Max DOC 2.250 OAL

Ingersoll 22J3E-20022D1R01 Milling Cutter 90.0°, Corn Cob 2.000 Weldon 0.7500 4 Flute Coolant 1.74 Max DOC 2.250 OAL

Part Number: ING3026917 ISO: 22J3E-20022D1R01 ANSI:22J3E-20022D1R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1009049
Vendor: Sussex Tool and Supply
$1,150.00
INGERSOLL 3026917 Parallelogram 90.0°, Corn Cob End Mill Weldon 0.7500 Positive 2.0000 50.80MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Corn Cob
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 0.7500 19.05MM
Overall Length 2.2500 57.15MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 4
Tool Dia 2.0000 50.80MM
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application Roughing
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size Ic 18
Cut Dia Min 2.0000 50.80MM
Depth Of Cut Max 1.7400
Cutting Edge Angle 90.0°
