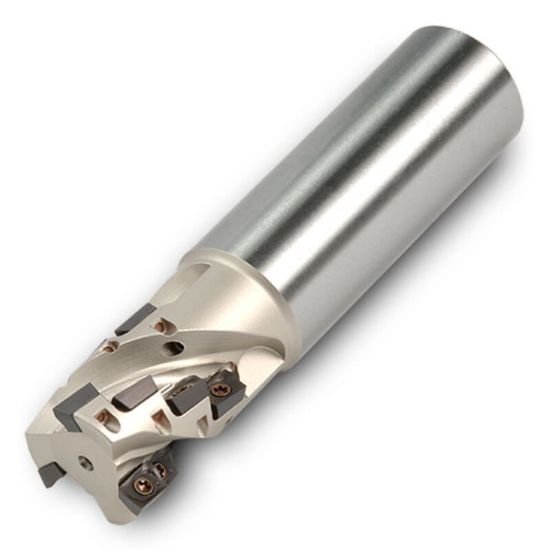

Picture of Ingersoll 22J3D-0701484R01 Milling Cutter 90.0°, Corn Cob 0.750 Weldon 0.7500 3 Flute Coolant 0.86 Max DOC 3.500 OAL

Ingersoll 22J3D-0701484R01 Milling Cutter 90.0°, Corn Cob 0.750 Weldon 0.7500 3 Flute Coolant 0.86 Max DOC 3.500 OAL

Part Number: ING3018987 ISO: 22J3D-0701484R01 ANSI:22J3D-0701484R01
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008883
Vendor: Sussex Tool and Supply
$903.47

Description

INGERSOLL 3018987 Parallelogram 90.0°, Corn Cob End Mill Weldon 0.7500 Positive 0.7500 19.05MM - 3/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Corn Cob
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 3.5000 88.90MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Tool Dia 0.7500 19.05MM - 3/4
Insert Size Ic 6
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.8600
Materials & Finish
Tool Material Steel
