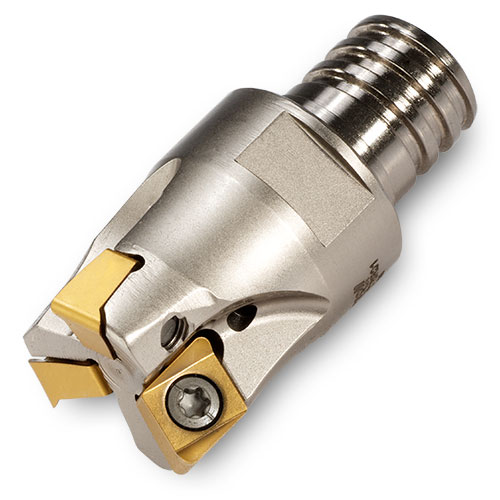

Picture of Ingersoll 1TV1D-10012TUR02 Milling Cutter 90.0°, Back Draft 1.000 T15 4 Flute Coolant 0.24 Max DOC

Ingersoll 1TV1D-10012TUR02 Milling Cutter 90.0°, Back Draft 1.000 T15 4 Flute Coolant 0.24 Max DOC

Part Number: ING2910929 ISO: 1TV1D-10012TUR02 ANSI:1TV1D-10012TUR02
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008387
Vendor: Sussex Tool and Supply
$476.00

Description

INGERSOLL 2910929 Parallelogram 90.0°, Back Draft, Copy Mill, End Mill Thread On T15 Negative 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill, Back Draft, Copy Mill
Coolant Thru Thru Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type Finishing, Semi Finishing
Insert Style MN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Dimensions & Sizing
Flutes/Inserts 4
Tool Dia 1.0000 25.40MM
Insert Size Ic 6
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.0000 25.40MM
Depth Of Cut Max 0.2400
Max Ramp Angle 3.90°
Materials & Finish
Tool Material Steel
