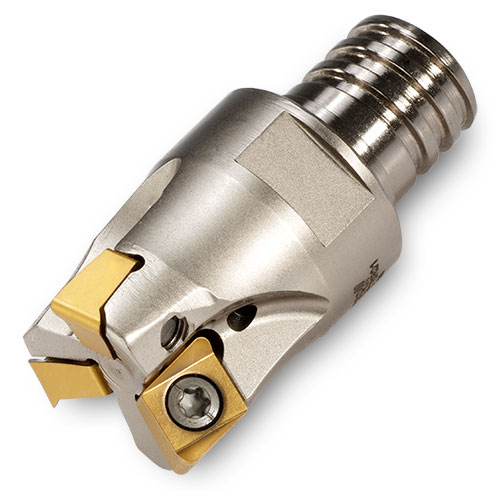

Picture of Ingersoll 1TV1D-07010TSR02 Milling Cutter 90.0°, Back Draft 0.750 T12 3 Flute Coolant 0.24 Max DOC

Ingersoll 1TV1D-07010TSR02 Milling Cutter 90.0°, Back Draft 0.750 T12 3 Flute Coolant 0.24 Max DOC

Part Number: ING2910928 ISO: 1TV1D-07010TSR02 ANSI:1TV1D-07010TSR02
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008386
Vendor: Sussex Tool and Supply
$406.93

Description

INGERSOLL 2910928 Parallelogram 90.0°, Back Draft, Copy Mill, End Mill Thread On T12 Negative 0.7500 19.05MM - 3/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill, Back Draft, Copy Mill
Coolant Thru Thru Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type Finishing, Semi Finishing
Insert Style MN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Dimensions & Sizing
Flutes/Inserts 3
Tool Dia 0.7500 19.05MM - 3/4
Insert Size Ic 6
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.2400
Max Ramp Angle 4.70°
Materials & Finish
Tool Material Steel
