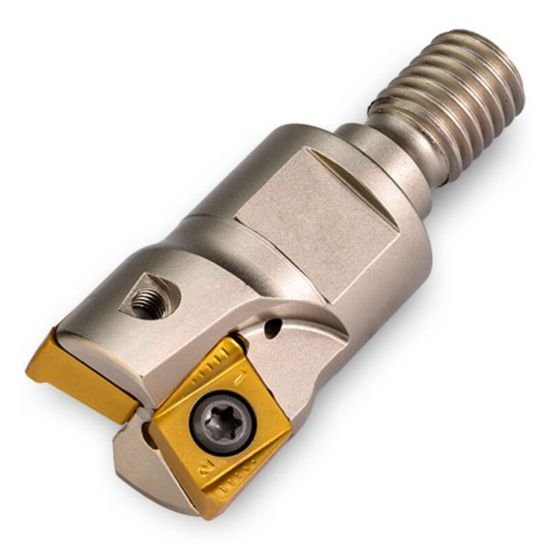

Picture of Ingersoll 1TJ1Q040043X8R00 Milling Cutter 90.0° 1.575 ScrewM16 4 Flute Coolant 0.437 Max DOC

Ingersoll 1TJ1Q040043X8R00 Milling Cutter 90.0° 1.575 ScrewM16 4 Flute Coolant 0.437 Max DOC

Part Number: ING3031367 ISO: 1TJ1Q040043X8R00 ANSI:1TJ1Q040043X8R00
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1009387

Description

INGERSOLL 3031367 Parallelogram 90.0°, End Mill Thread On SCREWM16 Negative 1.5750 40.01MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type Finishing, Roughing, Semi Finishing
Insert Style AN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Dimensions & Sizing
Flutes/Inserts 4
Tool Dia 1.5750 40.01MM
Insert Size Ic 12
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.5750 40.01MM
Depth Of Cut Max 0.4370
Max Ramp Angle 0.80°
Materials & Finish
Tool Material Steel
