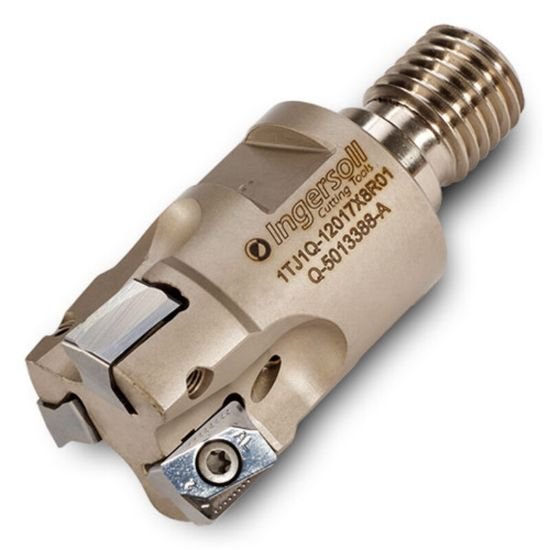

Picture of Ingersoll 1TJ1Q-12017X8R01 Milling Cutter 90.0° 1.250 ScrewM16 3 Flute Coolant 0.43 Max DOC

Ingersoll 1TJ1Q-12017X8R01 Milling Cutter 90.0° 1.250 ScrewM16 3 Flute Coolant 0.43 Max DOC

Part Number: ING3031347 ISO: 1TJ1Q-12017X8R01 ANSI:1TJ1Q-12017X8R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1009374
Vendor: Sussex Tool and Supply
$415.00
INGERSOLL 3031347 Parallelogram 90.0°, End Mill Thread On SCREWM16 Negative 1.2500 31.75MM - 1-1/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Screw On
Mach Side Connection Size M16
Coolant Thru Thru Coolant
Flutes/Inserts 3
Tool Dia 1.2500 31.75MM - 1-1/4
Type Of Tool Thread On
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style AN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Insert Size Ic 12
Cut Dia Min 1.2500 31.75MM - 1-1/4
Depth Of Cut Max 0.4300
Cutting Edge Angle 90.0°
Max Ramp Angle 1.00°
