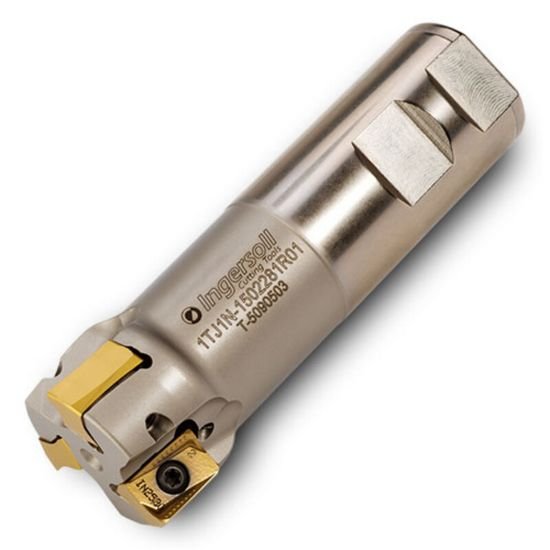

Picture of Ingersoll 1TJ1N-1501781R10 Milling Cutter 90.0° 1.500 Cylindrical1.2500 3 Flute 0.59 Max DOC 4.000 OAL

Ingersoll 1TJ1N-1501781R10 Milling Cutter 90.0° 1.500 Cylindrical1.2500 3 Flute 0.59 Max DOC 4.000 OAL

Part Number: ING3028845 ISO: 1TJ1N-1501781R10 ANSI:1TJ1N-1501781R10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1009150
Vendor: Sussex Tool and Supply
$489.00
INGERSOLL 3028845 Parallelogram 90.0°, End Mill End Mill Cylindrical 1.2500 Negative 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Cylindrical
Mach Side Connection Size 1.2500 31.75MM
Overall Length 4.0000 101.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Tool Dia 1.5000 38.10MM - 1-1/2
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style AN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Insert Size Ic 16
Cut Dia Min 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 0.5900
Cutting Edge Angle 90.0°
Max Ramp Angle 1.10°
