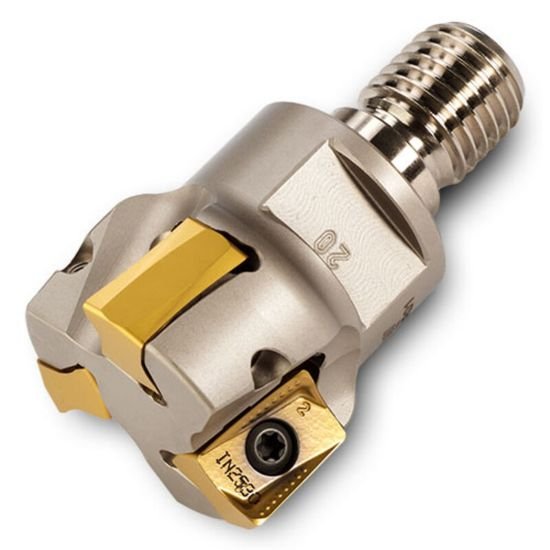

Picture of Ingersoll 1TJ1N-15015X8R01 Milling Cutter 90.0° 1.500 ScrewM16 3 Flute Coolant 0.59 Max DOC

Ingersoll 1TJ1N-15015X8R01 Milling Cutter 90.0° 1.500 ScrewM16 3 Flute Coolant 0.59 Max DOC

Part Number: ING3025666 ISO: 1TJ1N-15015X8R01 ANSI:1TJ1N-15015X8R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1009007
Vendor: Sussex Tool and Supply
$489.00
INGERSOLL 3025666 Parallelogram 90.0°, End Mill Thread On SCREWM16 Negative 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Screw On
Mach Side Connection Size M16
Coolant Thru Thru Coolant
Flutes/Inserts 3
Tool Dia 1.5000 38.10MM - 1-1/2
Type Of Tool Thread On
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style AN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Insert Size Ic 16
Cut Dia Min 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 0.5900
Cutting Edge Angle 90.0°
Max Ramp Angle 1.10°
