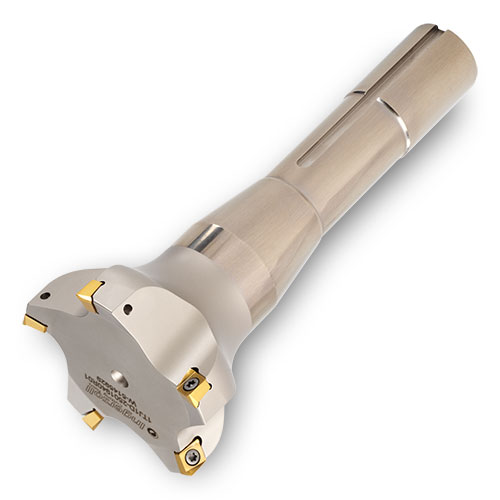

Picture of Ingersoll 1TJ1D-3001940R01 Milling Cutter 90.0°, Back Draft 3.000 R8 5 Flute 0.24 Max DOC 5.900 OAL

Ingersoll 1TJ1D-3001940R01 Milling Cutter 90.0°, Back Draft 3.000 R8 5 Flute 0.24 Max DOC 5.900 OAL

Part Number: ING2923621 ISO: 1TJ1D-3001940R01 ANSI:1TJ1D-3001940R01
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008619
Vendor: Sussex Tool and Supply
$711.20

Description

INGERSOLL 2923621 Parallelogram 90.0°, Copy Mill, End Mill, Feed Mill End Mill R8 Negative 3.0000 76.20MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill, Back Draft, Copy Mill, Feed Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Finishing, Roughing, Semi Finishing
Insert Style MN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Dimensions & Sizing
Overall Length 5.9000 149.86MM
Flutes/Inserts 5
Tool Dia 3.0000 76.20MM
Insert Size Ic 6
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 3.0000 76.20MM
Depth Of Cut Max 0.2400
Max Ramp Angle 1.30°
Materials & Finish
Tool Material Steel
