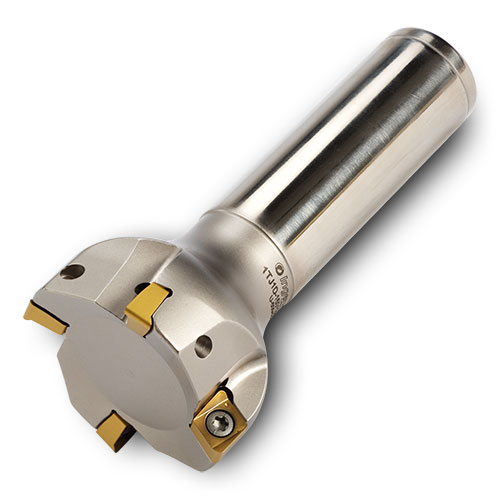

Picture of Ingersoll 1TJ1D-20012S7R01 Milling Cutter 90.0°, Back Draft 2.000 Weldon 0.7500 5 Flute Coolant 0.24 Max DOC 3.250 OAL

Ingersoll 1TJ1D-20012S7R01 Milling Cutter 90.0°, Back Draft 2.000 Weldon 0.7500 5 Flute Coolant 0.24 Max DOC 3.250 OAL

Part Number: ING2916450 ISO: 1TJ1D-20012S7R01 ANSI:1TJ1D-20012S7R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1008540
Vendor: Sussex Tool and Supply
$562.00
INGERSOLL 2916450 Parallelogram 90.0°, Copy Mill, End Mill, Feed Mill End Mill Weldon 0.7500 Negative 2.0000 50.80MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill, Back Draft, Copy Mill, Feed Mill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 0.7500 19.05MM
Overall Length 3.2500 82.55MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 5
Tool Dia 2.0000 50.80MM
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application Finishing, Roughing, Semi Finishing
Insert Style MN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Insert Size Ic 6
Cut Dia Min 2.0000 50.80MM
Depth Of Cut Max 0.2400
Cutting Edge Angle 90.0°
Max Ramp Angle 2.00°
