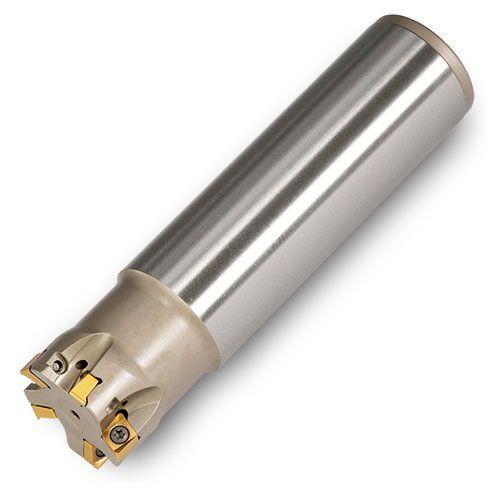

Picture of Ingersoll 1TJ1D-15047S5R01 Milling Cutter 90.0°, Back Draft 1.500 Cylindrical1.5000 6 Flute Coolant 0.24 Max DOC 7.000 OAL

Ingersoll 1TJ1D-15047S5R01 Milling Cutter 90.0°, Back Draft 1.500 Cylindrical1.5000 6 Flute Coolant 0.24 Max DOC 7.000 OAL

Part Number: ING2910919 ISO: 1TJ1D-15047S5R01 ANSI:1TJ1D-15047S5R01
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008378
Vendor: Sussex Tool and Supply
$593.60

Description

INGERSOLL 2910919 Parallelogram 90.0°, Copy Mill, End Mill, Feed Mill End Mill Cylindrical 1.5000 Negative 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill, Back Draft, Copy Mill, Feed Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Finishing, Roughing, Semi Finishing
Insert Style MN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Dimensions & Sizing
Overall Length 7.0000 177.80MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Flutes/Inserts 6
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 6
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 0.2400
Max Ramp Angle 2.80°
Materials & Finish
Tool Material Steel
