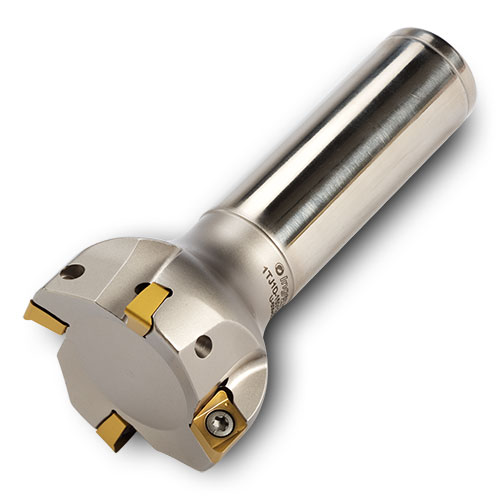

Picture of Ingersoll 1TJ1D-15012S7R01 Milling Cutter 90.0°, Back Draft 1.500 Weldon 0.7500 4 Flute Coolant 0.24 Max DOC 3.250 OAL

Ingersoll 1TJ1D-15012S7R01 Milling Cutter 90.0°, Back Draft 1.500 Weldon 0.7500 4 Flute Coolant 0.24 Max DOC 3.250 OAL

Part Number: ING2916449 ISO: 1TJ1D-15012S7R01 ANSI:1TJ1D-15012S7R01
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008539
Vendor: Sussex Tool and Supply
$562.80

Description

INGERSOLL 2916449 Parallelogram 90.0°, Copy Mill, End Mill, Feed Mill End Mill Weldon 0.7500 Negative 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill, Back Draft, Copy Mill, Feed Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Finishing, Roughing, Semi Finishing
Insert Style MN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Dimensions & Sizing
Overall Length 3.2500 82.55MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 4
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 6
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 0.2400
Max Ramp Angle 2.80°
Materials & Finish
Tool Material Steel
