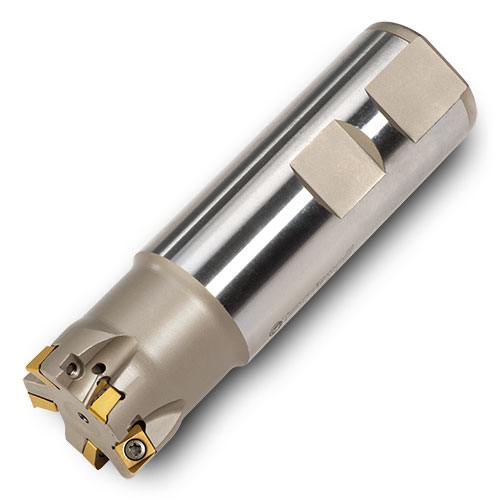

Picture of Ingersoll 1TJ1D-1201784R01 Milling Cutter 90.0°, Back Draft 1.250 Weldon 0.7500 5 Flute Coolant 0.24 Max DOC 3.750 OAL

Ingersoll 1TJ1D-1201784R01 Milling Cutter 90.0°, Back Draft 1.250 Weldon 0.7500 5 Flute Coolant 0.24 Max DOC 3.750 OAL

Part Number: ING2910914 ISO: 1TJ1D-1201784R01 ANSI:1TJ1D-1201784R01
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008373
Vendor: Sussex Tool and Supply
$532.93

Description

INGERSOLL 2910914 Parallelogram 90.0°, Copy Mill, End Mill, Feed Mill End Mill Weldon 0.7500 Negative 1.2500 31.75MM - 1-1/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill, Back Draft, Copy Mill, Feed Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Finishing, Roughing, Semi Finishing
Insert Style MN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Dimensions & Sizing
Overall Length 3.7500 95.25MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 5
Tool Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 6
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.2500 31.75MM - 1-1/4
Depth Of Cut Max 0.2400
Max Ramp Angle 3.60°
Materials & Finish
Tool Material Steel
