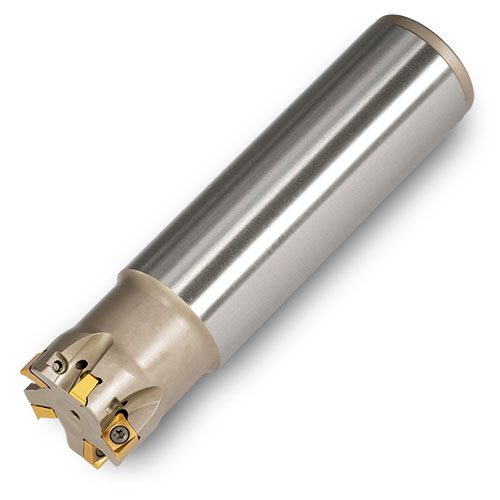

Picture of Ingersoll 1TJ1D-06020S6R01 Milling Cutter 90.0°, Back Draft 0.625 Cylindrical0.6250 2 Flute Coolant 0.24 Max DOC 4.000 OAL

Ingersoll 1TJ1D-06020S6R01 Milling Cutter 90.0°, Back Draft 0.625 Cylindrical0.6250 2 Flute Coolant 0.24 Max DOC 4.000 OAL

Part Number: ING2910908 ISO: 1TJ1D-06020S6R01 ANSI:1TJ1D-06020S6R01
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$340.67
SKU: 1008367

Description

INGERSOLL 2910908 Parallelogram 90.0°, Copy Mill, End Mill, Feed Mill End Mill Cylindrical 0.6250 Negative 0.6250 15.88MM - 5/8Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill, Back Draft, Copy Mill, Feed Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Finishing, Roughing, Semi Finishing
Insert Style MN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.6250 15.88MM - 5/8
Insert Size Ic 6
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.6250 15.88MM - 5/8
Depth Of Cut Max 0.2400
Max Ramp Angle 3.10°
Materials & Finish
Tool Material Steel
