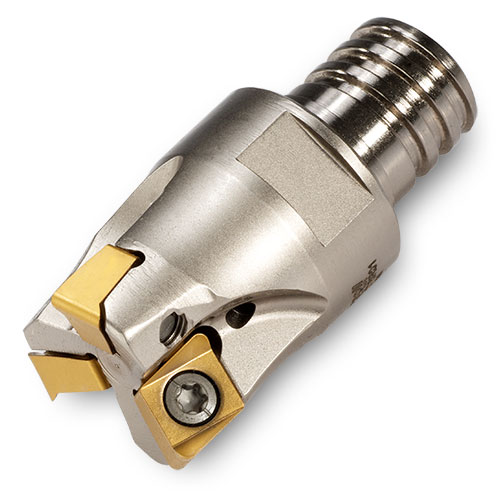

Picture of Ingersoll 1TJ1D-06008TRR01 Milling Cutter 90.0°, Back Draft 0.625 T10 2 Flute Coolant 0.24 Max DOC

Ingersoll 1TJ1D-06008TRR01 Milling Cutter 90.0°, Back Draft 0.625 T10 2 Flute Coolant 0.24 Max DOC

Part Number: ING2910924 ISO: 1TJ1D-06008TRR01 ANSI:1TJ1D-06008TRR01
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$356.53
SKU: 1008383

Description

INGERSOLL 2910924 Parallelogram 90.0°, Copy Mill, End Mill, Feed Mill Thread On T10 Negative 0.6250 15.88MM - 5/8Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill, Back Draft, Copy Mill, Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type Finishing, Roughing, Semi Finishing
Insert Style MN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Dimensions & Sizing
Flutes/Inserts 2
Tool Dia 0.6250 15.88MM - 5/8
Insert Size Ic 6
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.6250 15.88MM - 5/8
Depth Of Cut Max 0.2400
Max Ramp Angle 3.10°
Materials & Finish
Tool Material Steel
