  • INGERSOLL 1TJ1C-1001784R01 Milling Cutter 90.0°, Back Draft 1.000 Weldon 0.7500 5 Flute Yes Coolant 0.18 Max DOC 3.750 OAL

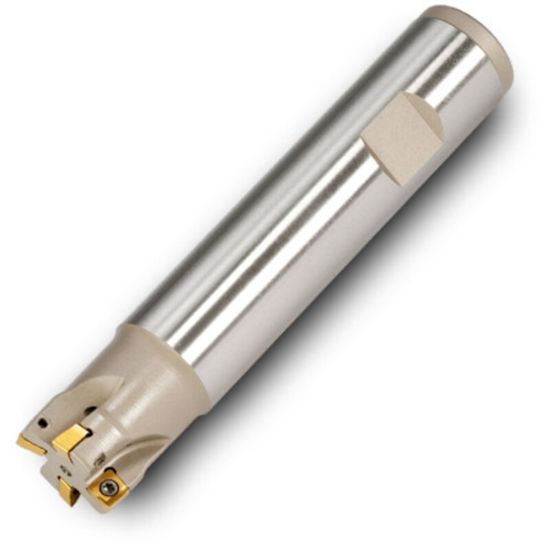

Picture of INGERSOLL 1TJ1C-1001784R01 Milling Cutter 90.0°, Back Draft 1.000 Weldon 0.7500 5 Flute Yes Coolant 0.18 Max DOC 3.750 OAL

INGERSOLL 1TJ1C-1001784R01 Milling Cutter 90.0°, Back Draft 1.000 Weldon 0.7500 5 Flute Yes Coolant 0.18 Max DOC 3.750 OAL

ANSI: 1TJ1C-1001784R01

ISO: 1TJ1C-1001784R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2910943
Delivery date: 3-5 days
$413.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

File Downloads

DXFSTPSTPL

Products specifications
Attribute name Attribute value
General Product Information
Sold by Pieces 1
Insert Application Semi Finishing, Finishing, Roughing
Application Feed Milling, Face Milling, Profile Milling, Slot Milling, Ramp Milling, Copy Milling
Insert/Tool Tool
Additional Key Information 1 Copy Mill, 90.0°, Feed Mill, End Mill
Package Size 1
Additional Key Information 2 Milling Cutter
Insert Type Negative
Additional Key Information 3 90.0°, Back Draft
Shipping State Illinois
Uncategorized
Made In USA No
Dimensional Specifications
Machine Side Connection Type Weldon
Overall Len 3.7500 95.25MM
Insert Size Ic 5
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 5
Depth Of Cut Max 0.1800
Machine Side WELDON0.7500
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutter Dia 1.0000 25.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Max Ramp Angle 2.20°
Insert Style EN
Coolant Thru Yes
