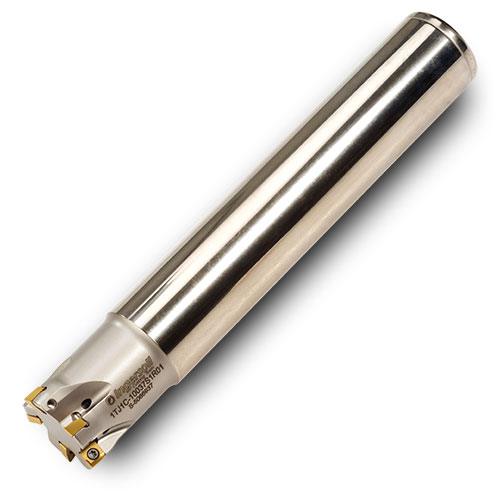

Picture of Ingersoll 1TJ1C-07030S7R01 Milling Cutter 90.0°, Back Draft 0.750 Weldon 0.7500 4 Flute Coolant 0.18 Max DOC 5.000 OAL

Ingersoll 1TJ1C-07030S7R01 Milling Cutter 90.0°, Back Draft 0.750 Weldon 0.7500 4 Flute Coolant 0.18 Max DOC 5.000 OAL

Part Number: ING2910942 ISO: 1TJ1C-07030S7R01 ANSI:1TJ1C-07030S7R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1008394
Vendor: Sussex Tool and Supply
$370.00
INGERSOLL 2910942 Parallelogram 90.0°, Copy Mill, End Mill, Feed Mill End Mill Weldon 0.7500 Negative 0.7500 19.05MM - 3/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill, Back Draft, Copy Mill, Feed Mill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 0.7500 19.05MM
Overall Length 5.0000 127.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 4
Tool Dia 0.7500 19.05MM - 3/4
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application Finishing, Roughing, Semi Finishing
Insert Style EN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Insert Size Ic 5
Cut Dia Min 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.1800
Cutting Edge Angle 90.0°
Max Ramp Angle 3.30°
