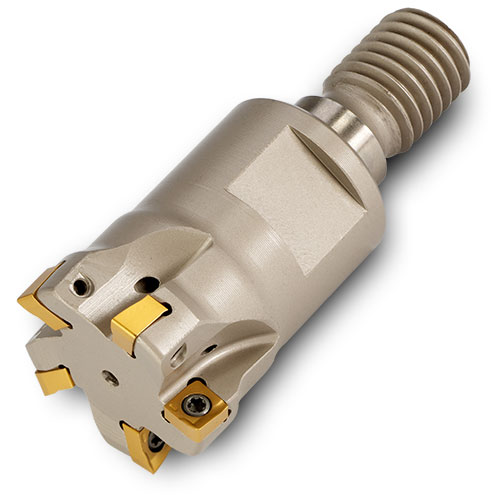

Picture of Ingersoll 1TJ1C-07015X6R01 Milling Cutter 90.0°, Back Draft 0.750 ScrewM10 4 Flute Coolant 0.18 Max DOC

Ingersoll 1TJ1C-07015X6R01 Milling Cutter 90.0°, Back Draft 0.750 ScrewM10 4 Flute Coolant 0.18 Max DOC

Part Number: ING2910948 ISO: 1TJ1C-07015X6R01 ANSI:1TJ1C-07015X6R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1008399
Vendor: Sussex Tool and Supply
$370.00
INGERSOLL 2910948 Parallelogram 90.0°, Copy Mill, End Mill, Feed Mill Thread On SCREWM10 Negative 0.7500 19.05MM - 3/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill, Back Draft, Copy Mill, Feed Mill
Tool Material Steel
Machine Side Connection Type Screw On
Mach Side Connection Size M10
Coolant Thru Thru Coolant
Flutes/Inserts 4
Tool Dia 0.7500 19.05MM - 3/4
Type Of Tool Thread On
Insert/Tool TOOL
Insert Application Finishing, Roughing, Semi Finishing
Insert Style EN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Insert Size Ic 5
Cut Dia Min 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.1800
Cutting Edge Angle 90.0°
Max Ramp Angle 3.30°
