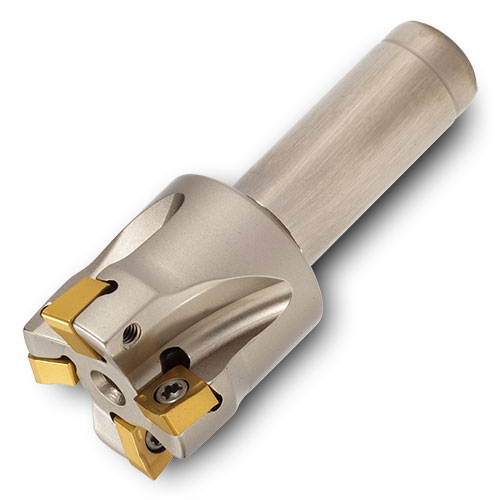

Picture of Ingersoll 1TJ1C-07007T8R01 Milling Cutter 90.0°, Back Draft 0.750 T08 4 Flute 0.18 Max DOC

Ingersoll 1TJ1C-07007T8R01 Milling Cutter 90.0°, Back Draft 0.750 T08 4 Flute 0.18 Max DOC

Part Number: ING2915008 ISO: 1TJ1C-07007T8R01 ANSI:1TJ1C-07007T8R01
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008516
Vendor: Sussex Tool and Supply
$400.40

Description

INGERSOLL 2915008 Parallelogram 90.0°, Copy Mill, End Mill, Feed Mill Thread On T08 Positive 0.7500 19.05MM - 3/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill, Back Draft, Copy Mill, Feed Mill
Coolant Thru Non Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type Finishing, Roughing, Semi Finishing
Insert Style EN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Flutes/Inserts 4
Tool Dia 0.7500 19.05MM - 3/4
Insert Size Ic 5
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.1800
Max Ramp Angle 3.30°
Materials & Finish
Tool Material Steel
