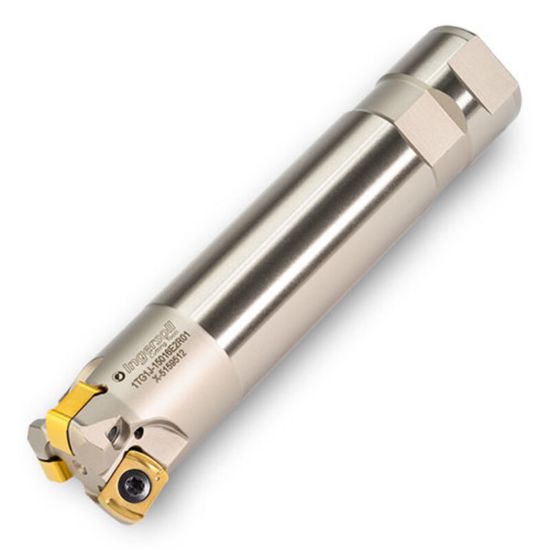

Picture of INGERSOLL 1TG1J-12025E2R01  Milling Feed Mill Milling Cutter PowerFeed+ Insert

INGERSOLL 1TG1J-12025E2R01  Milling Feed Mill Milling Cutter PowerFeed+ Insert

ANSI: 1TG1J-12025E2R01

ISO: 1TG1J-12025E2R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2926268
Delivery date: 3-5 days
$421.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Insert Type Positive
Application Face Milling, Copy Milling, Feed Milling, Ramp Milling, Slot Milling
Insert/Tool Insert
Additional Key Information 2 Milling Cutter
Sold by Pieces 1
Insert Application Roughing
Additional Key Information 1 Feed Mill
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Neck Length 2.2000 55.88MM
Machine Side Connection Size 1.2500 31.75MM
Insert Size Ic 11
Cut Dia Min 0.6500 16.51MM
Tool Material Steel
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 5.5000 139.70MM
Depth Of Cut Max 0.0780
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side WELDON1.2500
Machine Side Connection Type Weldon
Flutes/Inserts 2
Cutting & Machining Properties
Insert Style UN
Max Ramp Angle 0.48°
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Fasteners & Connectors
Insert Screw SM50-127-10
