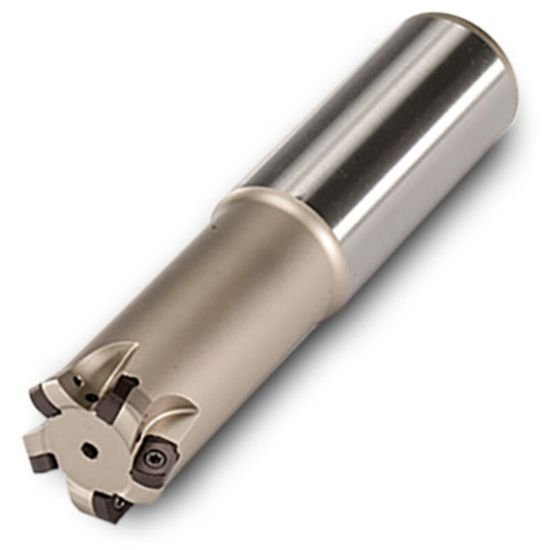

Picture of Ingersoll 1TG1G-10020S1R03 Milling Cutter 1.000 Weldon 1.0000 3 Flute Coolant 0.06 Max DOC 10.00 OAL

Ingersoll 1TG1G-10020S1R03 Milling Cutter 1.000 Weldon 1.0000 3 Flute Coolant 0.06 Max DOC 10.00 OAL

Part Number: ING2906980 ISO: 1TG1G-10020S1R03 ANSI:1TG1G-10020S1R03

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1008308
Vendor: Sussex Tool and Supply
$420.00
INGERSOLL 2906980 Feed Mill End Mill Weldon 1.0000 Negative 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 1.0000 25.40MM
Overall Length 10.0000 254.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
Tool Dia 1.0000 25.40MM
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application Roughing
Insert Style UN
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Insert Size Ic 9
Cut Dia Min 0.5940 15.09MM
Depth Of Cut Max 0.0600
Cut Dia Max 1.0000 25.40MM
Max Ramp Angle 3.20°
