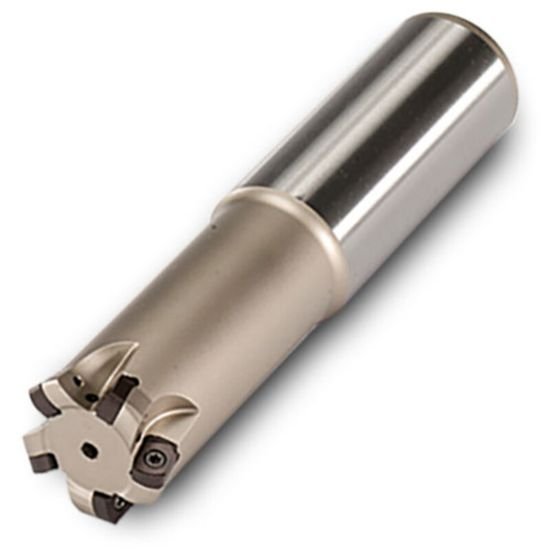

Picture of Ingersoll 1TG1G-10019S1R03 Milling Cutter 1.000 Weldon 1.0000 3 Flute Coolant 0.06 Max DOC 7.000 OAL

Ingersoll 1TG1G-10019S1R03 Milling Cutter 1.000 Weldon 1.0000 3 Flute Coolant 0.06 Max DOC 7.000 OAL

Part Number: ING2906973 ISO: 1TG1G-10019S1R03 ANSI:1TG1G-10019S1R03
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008302
Vendor: Sussex Tool and Supply
$439.60

Description

INGERSOLL 2906973 Feed Mill End Mill Weldon 1.0000 Negative 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Style UN
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Dimensions & Sizing
Overall Length 7.0000 177.80MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
Tool Dia 1.0000 25.40MM
Insert Size Ic 9
Performance & Capacity
Cut Dia Min 0.5940 15.09MM
Depth Of Cut Max 0.0600
Cut Dia Max 1.0000 25.40MM
Max Ramp Angle 3.20°
Materials & Finish
Tool Material Steel
