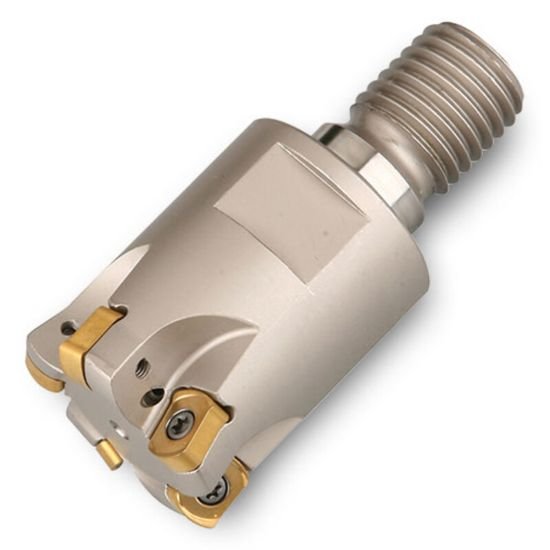

Picture of Ingersoll 1TG1F032040X8R00 Milling Cutter 1.260 ScrewM16 5 Flute Coolant 0.0394 Max DOC

Ingersoll 1TG1F032040X8R00 Milling Cutter 1.260 ScrewM16 5 Flute Coolant 0.0394 Max DOC

Part Number: ING3029806 ISO: 1TG1F032040X8R00 ANSI:1TG1F032040X8R00
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1009233
Vendor: Sussex Tool and Supply
$490.93

Description

INGERSOLL 3029806 Feed Mill Thread On SCREWM16 Negative 1.2600 32.00MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type Roughing
Insert Style UN
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Dimensions & Sizing
Flutes/Inserts 5
Tool Dia 1.2598 32.00MM
Insert Size Ic 6
Performance & Capacity
Cut Dia Min 0.9570 24.31MM
Depth Of Cut Max 0.0394
Cut Dia Max 1.2600 32.00MM
Max Ramp Angle 1.00°
Materials & Finish
Tool Material Steel
