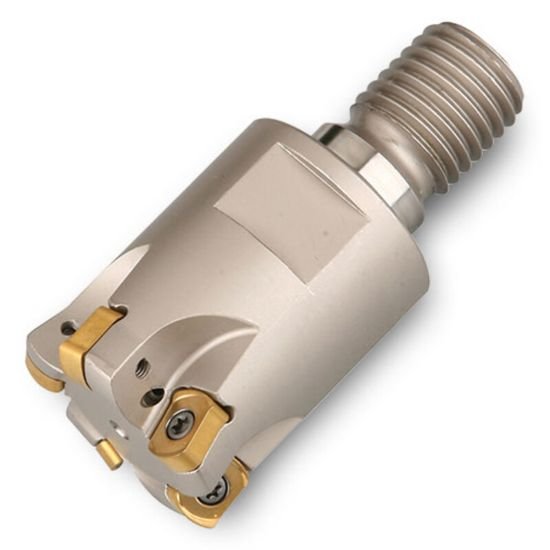

Picture of Ingersoll 1TG1F-15015X8R10 Milling Cutter 1.500 ScrewM16 6 Flute Coolant 0.043 Max DOC

Ingersoll 1TG1F-15015X8R10 Milling Cutter 1.500 ScrewM16 6 Flute Coolant 0.043 Max DOC

Part Number: ING3030586 ISO: 1TG1F-15015X8R10 ANSI:1TG1F-15015X8R10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1009311
Vendor: Sussex Tool and Supply
$525.00
INGERSOLL 3030586 Feed Mill Thread On SCREWM16 Negative 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Screw On
Mach Side Connection Size M16
Coolant Thru Thru Coolant
Flutes/Inserts 6
Tool Dia 1.5000 38.10MM - 1-1/2
Type Of Tool Thread On
Insert/Tool TOOL
Insert Application Roughing
Insert Style UN
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Insert Size Ic 6
Cut Dia Min 1.1960 30.38MM
Depth Of Cut Max 0.0430
Cut Dia Max 1.5000 38.10MM - 1-1/2
Max Ramp Angle 0.85°
