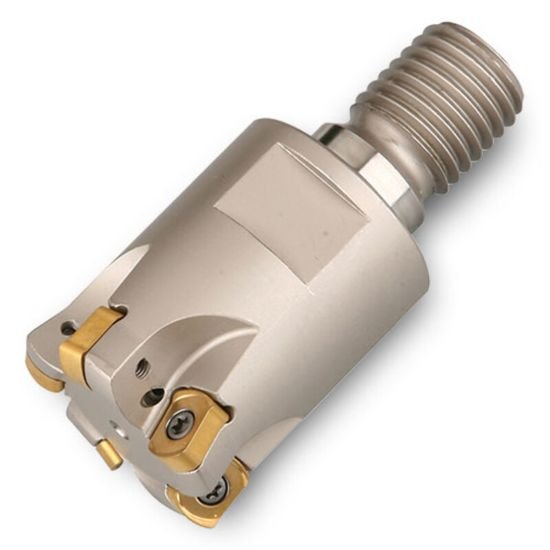

Picture of Ingersoll 1TG1F-12015X8R01 Milling Cutter 1.250 ScrewM16 5 Flute Coolant 0.043 Max DOC

Ingersoll 1TG1F-12015X8R01 Milling Cutter 1.250 ScrewM16 5 Flute Coolant 0.043 Max DOC

Part Number: ING3029350 ISO: 1TG1F-12015X8R01 ANSI:1TG1F-12015X8R01
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1009197
Vendor: Sussex Tool and Supply
$490.93

Description

INGERSOLL 3029350 Feed Mill Thread On SCREWM16 Negative 1.2500 31.75MM - 1-1/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type Roughing
Insert Style UN
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Dimensions & Sizing
Flutes/Inserts 5
Tool Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 6
Performance & Capacity
Cut Dia Min 0.9460 24.03MM
Depth Of Cut Max 0.0430
Cut Dia Max 1.2500 31.75MM - 1-1/4
Max Ramp Angle 0.70°
Materials & Finish
Tool Material Steel
