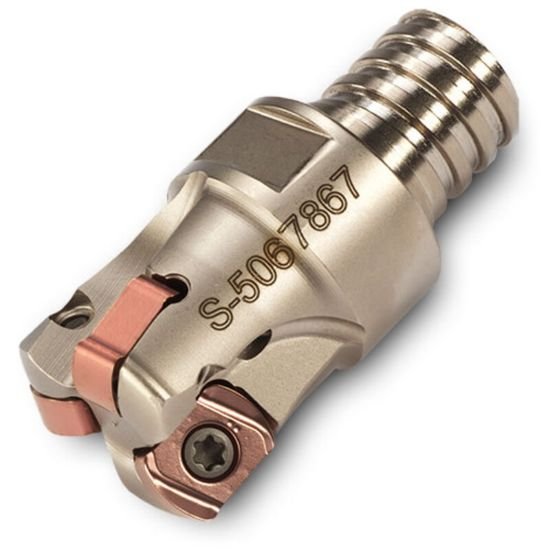

Picture of Ingersoll 1TG1F-10012TUR01 Milling Cutter 1.000 T15 4 Flute Coolant 0.043 Max DOC

Ingersoll 1TG1F-10012TUR01 Milling Cutter 1.000 T15 4 Flute Coolant 0.043 Max DOC

Part Number: ING3030494 ISO: 1TG1F-10012TUR01 ANSI:1TG1F-10012TUR01
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1009308
Vendor: Sussex Tool and Supply
$455.47

Description

INGERSOLL 3030494 Feed Mill Thread On T15 Negative 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type Roughing
Insert Style UN
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Dimensions & Sizing
Flutes/Inserts 4
Tool Dia 1.0000 25.40MM
Insert Size Ic 6
Performance & Capacity
Cut Dia Min 0.7060 17.93MM
Depth Of Cut Max 0.0430
Cut Dia Max 1.0000 25.40MM
Max Ramp Angle 0.95°
Materials & Finish
Tool Material Steel
