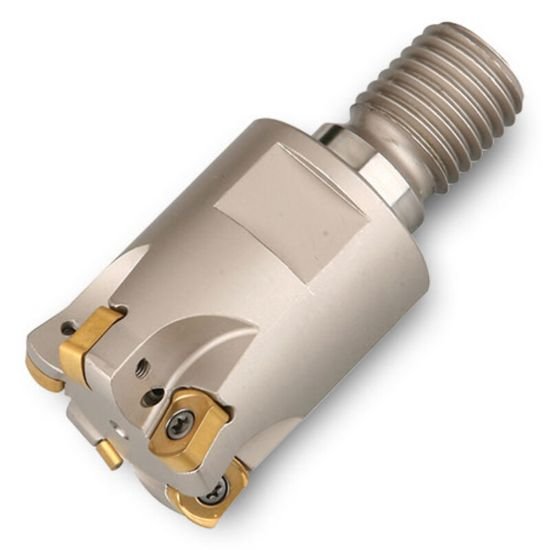

Picture of Ingersoll 1TG1F-06010X5R01 Milling Cutter 0.625 ScrewM08 2 Flute Coolant 0.028 Max DOC

Ingersoll 1TG1F-06010X5R01 Milling Cutter 0.625 ScrewM08 2 Flute Coolant 0.028 Max DOC

Part Number: ING3030146 ISO: 1TG1F-06010X5R01 ANSI:1TG1F-06010X5R01
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1009269
Vendor: Sussex Tool and Supply
$394.80

Description

INGERSOLL 3030146 Feed Mill Thread On SCREWM08 Negative 0.6250 15.88MM - 5/8Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type Roughing
Insert Style UN
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Dimensions & Sizing
Flutes/Inserts 2
Tool Dia 0.6250 15.88MM - 5/8
Insert Size Ic 6
Performance & Capacity
Cut Dia Min 0.3650 9.27MM
Depth Of Cut Max 0.0280
Cut Dia Max 0.6250 15.88MM - 5/8
Max Ramp Angle 1.55°
Materials & Finish
Tool Material Steel
