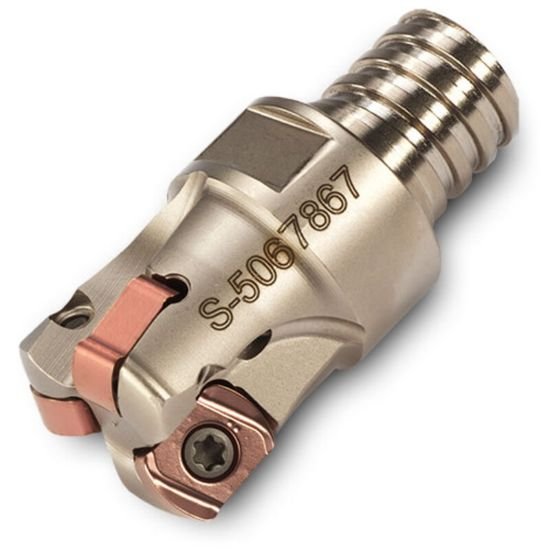

Picture of Ingersoll 1TG1F-06008TRR01 Milling Cutter 0.625 T10 2 Flute Coolant 0.028 Max DOC

Ingersoll 1TG1F-06008TRR01 Milling Cutter 0.625 T10 2 Flute Coolant 0.028 Max DOC

Part Number: ING3030487 ISO: 1TG1F-06008TRR01 ANSI:1TG1F-06008TRR01
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1009306
Vendor: Sussex Tool and Supply
$394.80

Description

INGERSOLL 3030487 Feed Mill Thread On T10 Negative 0.6250 15.88MM - 5/8Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type Roughing
Insert Style UN
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Dimensions & Sizing
Flutes/Inserts 2
Tool Dia 0.6250 15.88MM - 5/8
Insert Size Ic 6
Performance & Capacity
Cut Dia Min 0.3650 9.27MM
Depth Of Cut Max 0.0280
Cut Dia Max 0.6250 15.88MM - 5/8
Max Ramp Angle 1.55°
Materials & Finish
Tool Material Steel
