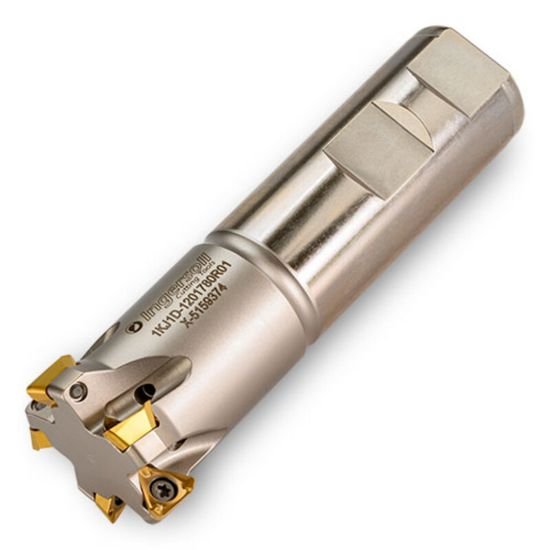

Picture of Ingersoll 1KJ1D-1003784R01 Milling Cutter 90.0° 1.000 Weldon 0.7500 3 Flute Coolant 0.275 Max DOC 6.000 OAL

Ingersoll 1KJ1D-1003784R01 Milling Cutter 90.0° 1.000 Weldon 0.7500 3 Flute Coolant 0.275 Max DOC 6.000 OAL

Part Number: ING3031461 ISO: 1KJ1D-1003784R01 ANSI:1KJ1D-1003784R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1009416
Vendor: Sussex Tool and Supply
$435.00
INGERSOLL 3031461 Triangle 90.0°, End Mill End Mill Weldon 0.7500 Positive 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 0.7500 19.05MM
Overall Length 6.0000 152.40MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Tool Dia 1.0000 25.40MM
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application Finishing, Roughing, Semi Finishing
Insert Style TH
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Insert Size Ic 6
Cut Dia Min 1.0000 25.40MM
Depth Of Cut Max 0.2750
Cutting Edge Angle 90.0°
Max Ramp Angle 2.10°
