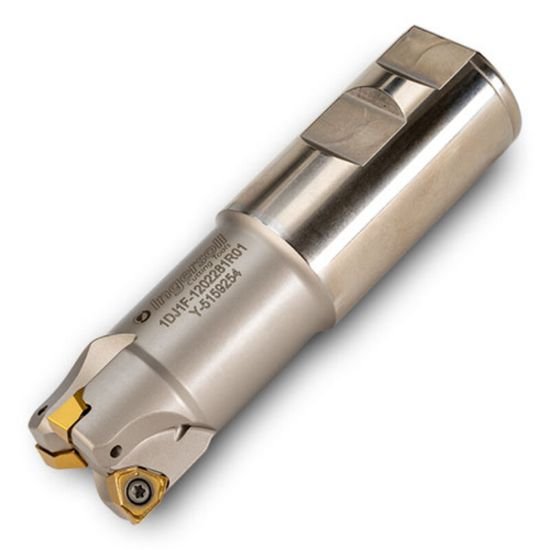

Picture of Ingersoll 1DJ1F-1001584R01 Milling Cutter 90.0° 1.000 Weldon 0.7500 2 Flute Coolant 0.244 Max DOC 3.500 OAL

Ingersoll 1DJ1F-1001584R01 Milling Cutter 90.0° 1.000 Weldon 0.7500 2 Flute Coolant 0.244 Max DOC 3.500 OAL

Part Number: ING3031721 ISO: 1DJ1F-1001584R01 ANSI:1DJ1F-1001584R01
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$311.73
SKU: 1009436

Description

INGERSOLL 3031721 Trigon 90.0°, End Mill End Mill Weldon 0.7500 Negative 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Finishing, Roughing, Semi Finishing
Insert Style WN
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Dimensions & Sizing
Overall Length 3.5000 88.90MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 1.0000 25.40MM
Insert Size Ic 9
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.0000 25.40MM
Depth Of Cut Max 0.2440
Materials & Finish
Tool Material Steel
