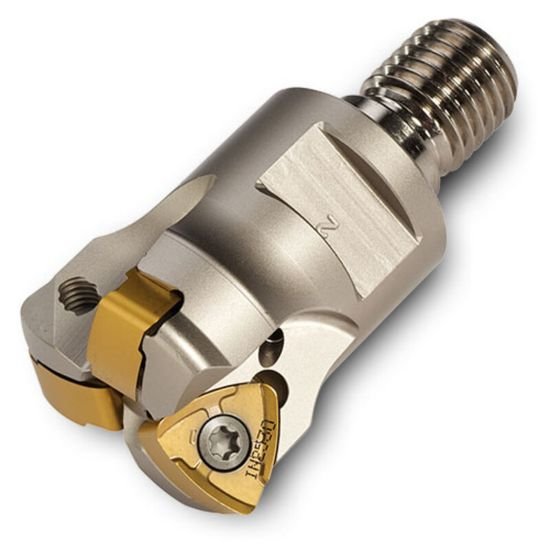

Picture of Ingersoll 1DG1P-15017X9R01 Milling Cutter 1.500 ScrewM20 3 Flute Coolant 0.0787 Max DOC

Ingersoll 1DG1P-15017X9R01 Milling Cutter 1.500 ScrewM20 3 Flute Coolant 0.0787 Max DOC

Part Number: ING2922121 ISO: 1DG1P-15017X9R01 ANSI:1DG1P-15017X9R01
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008592
Vendor: Sussex Tool and Supply
$570.27

Description

INGERSOLL 2922121 Trigon Feed Mill Thread On SCREWM20 Negative 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type Roughing
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Dimensions & Sizing
Flutes/Inserts 3
Tool Dia 1.5000 38.10MM - 1-1/2
Performance & Capacity
Cut Dia Min 0.7550 19.18MM
Depth Of Cut Max 0.0787
Cut Dia Max 1.5000 38.10MM - 1-1/2
Max Ramp Angle 1.50°
Materials & Finish
Tool Material Steel
