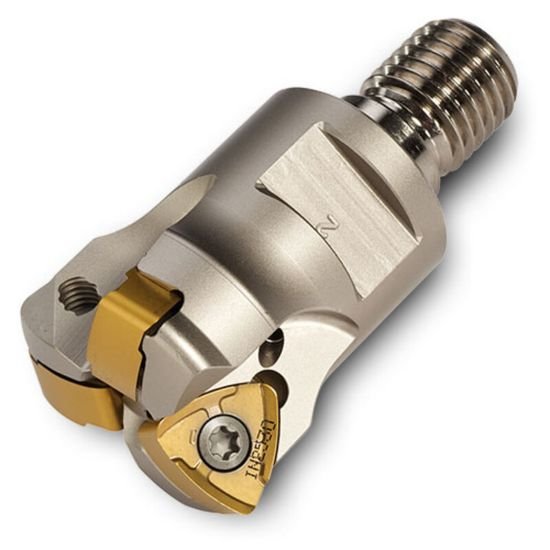

Picture of Ingersoll 1DG1P-15017X8R01 Milling Cutter 1.500 ScrewM16 3 Flute Coolant 0.0787 Max DOC

Ingersoll 1DG1P-15017X8R01 Milling Cutter 1.500 ScrewM16 3 Flute Coolant 0.0787 Max DOC

Part Number: ING2912730 ISO: 1DG1P-15017X8R01 ANSI:1DG1P-15017X8R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1008458
Vendor: Sussex Tool and Supply
$528.50
INGERSOLL 2912730 Trigon Feed Mill Thread On SCREWM16 Negative 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Screw On
Mach Side Connection Size M16
Coolant Thru Thru Coolant
Flutes/Inserts 3
Tool Dia 1.5000 38.10MM - 1-1/2
Type Of Tool Thread On
Insert/Tool TOOL
Insert Application Roughing
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Cut Dia Min 0.7550 19.18MM
Depth Of Cut Max 0.0787
Cut Dia Max 1.5000 38.10MM - 1-1/2
Max Ramp Angle 1.50°
