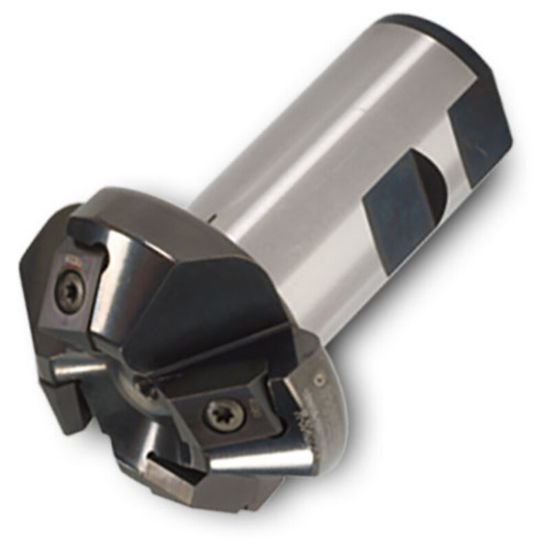

Picture of Ingersoll 19N1A-1001180R01 Milling Cutter 48.0° 1.000 Cylindrical1.0000 4 Flute 0.31 Max DOC 3.380 OAL

Ingersoll 19N1A-1001180R01 Milling Cutter 48.0° 1.000 Cylindrical1.0000 4 Flute 0.31 Max DOC 3.380 OAL

Part Number: ING2907289 ISO: 19N1A-1001180R01 ANSI:19N1A-1001180R01
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008322
Vendor: Sussex Tool and Supply
$588.00

Description

INGERSOLL 2907289 48.0°, Chamfer Mill End Mill Cylindrical 1.0000 Negative 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Chamfer Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style LS
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Dimensions & Sizing
Overall Length 3.3800 85.85MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 4
Tool Dia 1.0000 25.40MM
Insert Size Ic 32
Geometry & Angles
Cutting Edge Angle 48.0°
Performance & Capacity
Cut Dia Min 1.0000 25.40MM
Depth Of Cut Max 0.3100
Cut Dia Max 1.5600 39.62MM
Materials & Finish
Tool Material Steel
