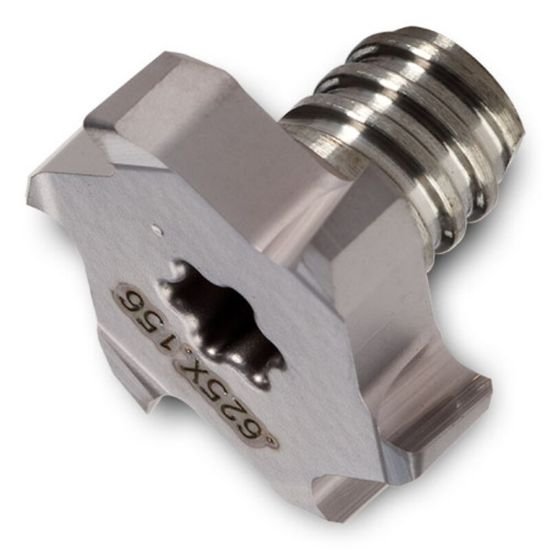

Picture of Ingersoll 18T22560T8RN04 IN1030 Dia 22.50mm SH T08 LOC 0.8858T-Slot,Replacable Head Carbide TiCN Single End 0.0157 0.40mm CHIPSURFER

Ingersoll 18T22560T8RN04 IN1030 Dia 22.50mm SH T08 LOC 0.8858T-Slot,Replacable Head Carbide TiCN Single End 0.0157 0.40mm CHIPSURFER

Part Number: ING5840398
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1290120
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
This product has a minimum quantity of 2

Description

INGERSOLL 18T22560T8RN04 IN1030 T-Slot,Replacable Head Carbide TiCN 0.0157 0.40MM Flutes 6 Single End CHIPSURFER Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type T-Slot, Screw On Head
Coolant Thru Non Coolant
Length Type STANDARD
Cutter Style Screw On T-Slot
Single/Double End Single End
Inch/Metric Metric
Dimensions & Sizing
Flutes/Inserts 6
Tool Dia 0.8858 22.50MM
Length Of Cut 0.8858 22.50MM
Cutting Width 0.2362 6.00MM
Geometry & Angles
Corner Radius 0.0157 0.40MM
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TICN
