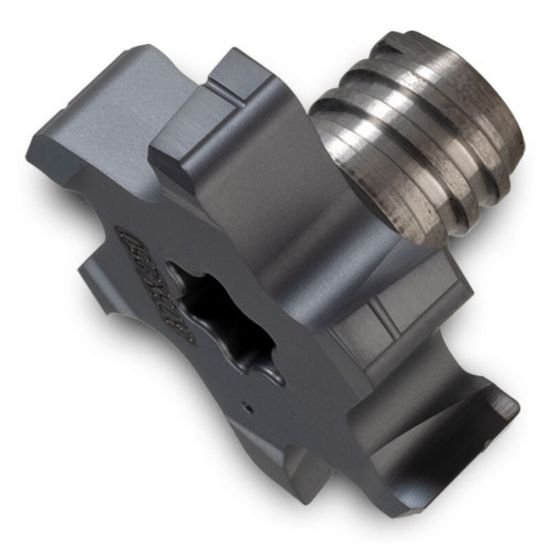

Picture of Ingersoll 18T-7516T8RN01 IN1030 Dia 3/4 SH T08 LOC 0.7500T-Slot,Replacable Head Carbide TiCN Single End 0.0150 0.38mm CHIPSURFER

Ingersoll 18T-7516T8RN01 IN1030 Dia 3/4 SH T08 LOC 0.7500T-Slot,Replacable Head Carbide TiCN Single End 0.0150 0.38mm CHIPSURFER

Part Number: ING5840265

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1181358
Vendor: Sussex Tool and Supply
$0.00
This product has a minimum quantity of 2
INGERSOLL 18T-7516T8RN01 IN1030 T-Slot,Replacable Head Carbide TiCN 0.0150 0.38MM Flutes 6 Single End CHIPSURFER Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type T-Slot, Screw On Head
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Screw On
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Coating TICN
Mach Side Connection Size T08
Coolant Thru Non Coolant
Flutes/Inserts 6
Tool Dia 0.7500 19.05MM - 3/4
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.7500 19.05MM
Cutter Style Screw On T-Slot
Single/Double End Single End
Corner Radius 0.0150 0.38MM
Inch/Metric Inch
Cutting Width 0.1560 3.96MM
