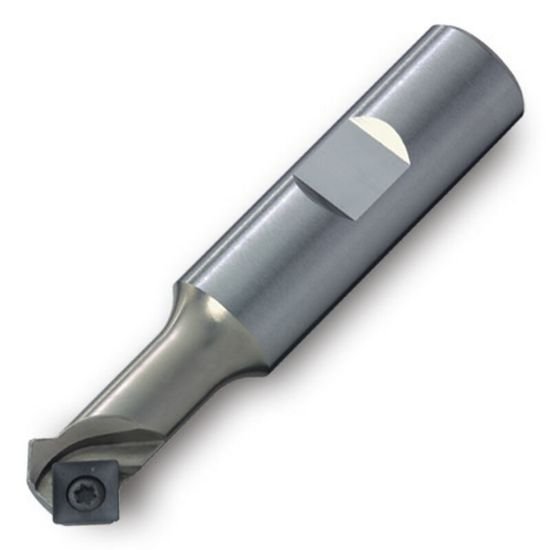

Picture of Ingersoll 15P1E-0201584R01 Milling Cutter 45.0° 0.531 Weldon 0.7500 1 Flute 0.24 Max DOC 3.500 OAL

Ingersoll 15P1E-0201584R01 Milling Cutter 45.0° 0.531 Weldon 0.7500 1 Flute 0.24 Max DOC 3.500 OAL

Part Number: ING3012752 ISO: 15P1E-0201584R01 ANSI:15P1E-0201584R01
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008762
Vendor: Sussex Tool and Supply
$210.93

Description

INGERSOLL 3012752 Square 45.0°, Chamfer Mill, Back Chamfer End Mill Weldon 0.7500 Positive 0.5310 13.49MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Chamfer Mill, Back Chamfer
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style SD
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Dimensions & Sizing
Overall Length 3.5000 88.90MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 1
Tool Dia 0.5310 13.49MM
Insert Size Ic 9
Geometry & Angles
Cutting Edge Angle 45.0°
Performance & Capacity
Cut Dia Min 0.2420 6.15MM - C
Depth Of Cut Max 0.2400
Cut Dia Max 0.5310 13.49MM
Materials & Finish
Tool Material Steel
