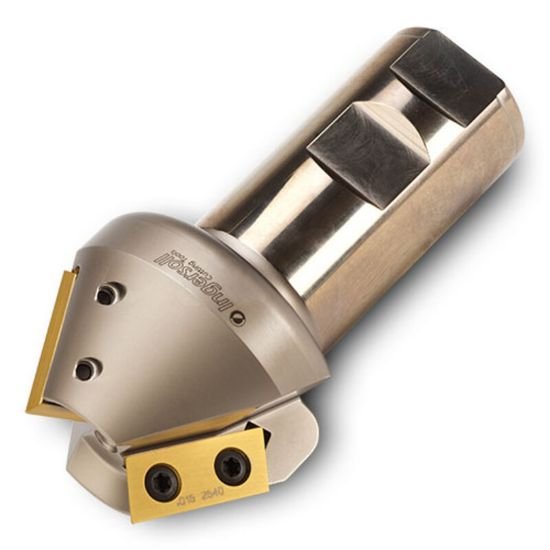

Picture of Ingersoll 15N1H-0802286R01 Milling Cutter 45.0° 0.875 Cylindrical1.5000 2 Flute 0.69 Max DOC 4.910 OAL

Ingersoll 15N1H-0802286R01 Milling Cutter 45.0° 0.875 Cylindrical1.5000 2 Flute 0.69 Max DOC 4.910 OAL

Part Number: ING3007475 ISO: 15N1H-0802286R01 ANSI:15N1H-0802286R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1008714
Vendor: Sussex Tool and Supply
$379.00
INGERSOLL 3007475 Parallelogram 45 DEGREE End Mill Cylindrical 1.5000 Positive 0.8750 22.23MM - 7/8Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Face Mill
Tool Material Steel
Machine Side Connection Type Cylindrical
Mach Side Connection Size 1.5000 38.10MM
Overall Length 4.9100 124.71MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Flutes/Inserts 2
Tool Dia 0.8750 22.23MM - 7/8
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application General Purpose
Insert Style BE
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size Ic 25
Cut Dia Min 0.8750 22.23MM - 7/8
Depth Of Cut Max 0.6900
Cut Dia Max 2.2700 57.66MM
