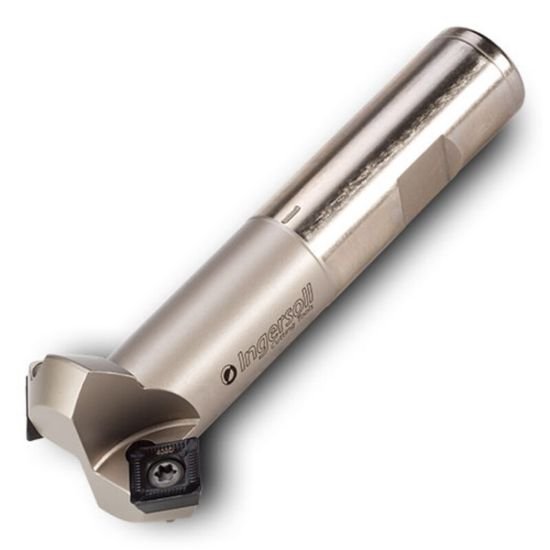

Picture of Ingersoll 15N1G-1502084R01 Milling Cutter 45.0° 1.500 Weldon 0.7500 2 Flute 0.27 Max DOC 4.000 OAL

Ingersoll 15N1G-1502084R01 Milling Cutter 45.0° 1.500 Weldon 0.7500 2 Flute 0.27 Max DOC 4.000 OAL

Part Number: ING3008398 ISO: 15N1G-1502084R01 ANSI:15N1G-1502084R01
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008728
Vendor: Sussex Tool and Supply
$352.80

Description

INGERSOLL 3008398 Square 45.0°, Chamfer Mill, Back Chamfer End Mill Weldon 0.7500 Positive 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Chamfer Mill, Back Chamfer
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style SH
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 11
Geometry & Angles
Cutting Edge Angle 45.0°
Performance & Capacity
Cut Dia Min 0.9100 23.11MM
Depth Of Cut Max 0.2700
Cut Dia Max 1.5000 38.10MM - 1-1/2
Materials & Finish
Tool Material Steel
