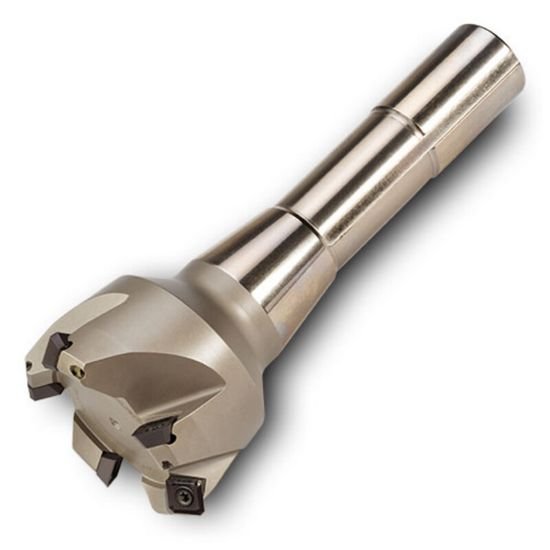

Picture of Ingersoll 15N1F-2001940R00 Milling Cutter 45.0° 2.000 R8 5 Flute 0.18 Max DOC 5.900 OAL

Ingersoll 15N1F-2001940R00 Milling Cutter 45.0° 2.000 R8 5 Flute 0.18 Max DOC 5.900 OAL

Part Number: ING3040643 ISO: 15N1F-2001940R00 ANSI:15N1F-2001940R00
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1009500
Vendor: Sussex Tool and Supply
$491.87

Description

INGERSOLL 3040643 Square 45.0°, Chamfer Mill End Mill R8 Positive 2.0000 50.80MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Chamfer Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style SE
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Dimensions & Sizing
Overall Length 5.9000 149.86MM
Flutes/Inserts 5
Tool Dia 2.0000 50.80MM
Insert Size Ic 9
Geometry & Angles
Cutting Edge Angle 45.0°
Performance & Capacity
Cut Dia Min 2.0000 50.80MM
Depth Of Cut Max 0.1800
Cut Dia Max 2.4000 60.96MM
Materials & Finish
Tool Material Steel
