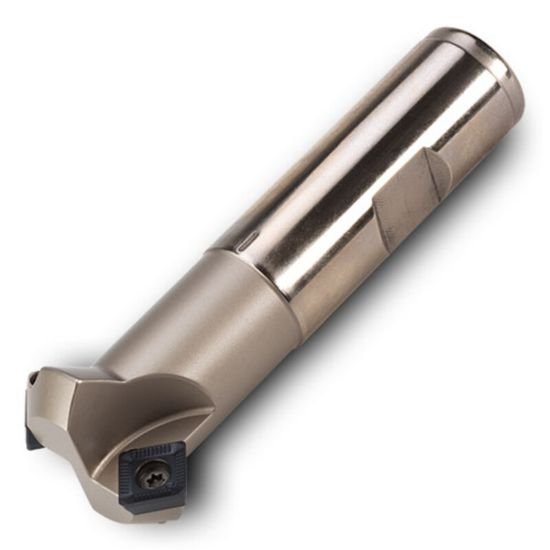

Picture of Ingersoll 15N1F-1201584R01 Milling Cutter 45.0° 1.250 Weldon 0.7500 2 Flute 0.23 Max DOC 3.500 OAL

Ingersoll 15N1F-1201584R01 Milling Cutter 45.0° 1.250 Weldon 0.7500 2 Flute 0.23 Max DOC 3.500 OAL

Part Number: ING3010302 ISO: 15N1F-1201584R01 ANSI:15N1F-1201584R01
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008735
Vendor: Sussex Tool and Supply
$331.33

Description

INGERSOLL 3010302 Square 45.0°, Chamfer Mill, Back Chamfering End Mill Weldon 0.7500 Positive 1.2500 31.75MM - 1-1/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Chamfer Mill, Back Chamfer
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style SH
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Dimensions & Sizing
Overall Length 3.5000 88.90MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 9
Geometry & Angles
Cutting Edge Angle 45.0°
Performance & Capacity
Cut Dia Min 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.2300
Cut Dia Max 1.2500 31.75MM - 1-1/4
Materials & Finish
Tool Material Steel
