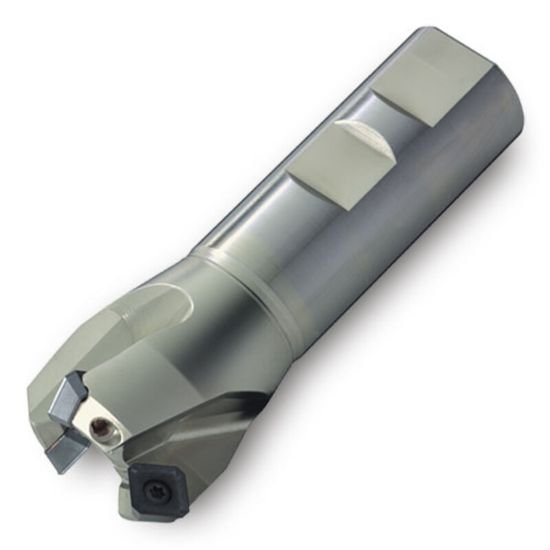

Picture of Ingersoll 15N1F-1001780R00 Milling Cutter 45.0° 1.000 Cylindrical1.0000 3 Flute 0.18 Max DOC 3.750 OAL

Ingersoll 15N1F-1001780R00 Milling Cutter 45.0° 1.000 Cylindrical1.0000 3 Flute 0.18 Max DOC 3.750 OAL

Part Number: ING3012760 ISO: 15N1F-1001780R00 ANSI:15N1F-1001780R00
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008765
Vendor: Sussex Tool and Supply
$246.40

Description

INGERSOLL 3012760 Square 45.0°, Chamfer Mill End Mill Cylindrical 1.0000 Positive 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Chamfer Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style SE
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Dimensions & Sizing
Overall Length 3.7500 95.25MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
Tool Dia 1.0000 25.40MM
Insert Size Ic 9
Geometry & Angles
Cutting Edge Angle 45.0°
Performance & Capacity
Cut Dia Min 1.0000 25.40MM
Depth Of Cut Max 0.1800
Cut Dia Max 1.3800 35.05MM
Materials & Finish
Tool Material Steel
