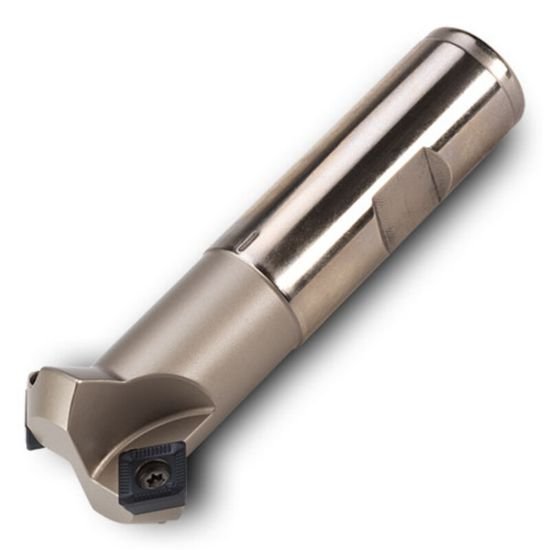

Picture of Ingersoll 15N1F-1001584R01 Milling Cutter 45.0° 1.000 Weldon 0.7500 1 Flute 0.23 Max DOC 3.500 OAL

Ingersoll 15N1F-1001584R01 Milling Cutter 45.0° 1.000 Weldon 0.7500 1 Flute 0.23 Max DOC 3.500 OAL

Part Number: ING3010303 ISO: 15N1F-1001584R01 ANSI:15N1F-1001584R01
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008736
Vendor: Sussex Tool and Supply
$261.33

Description

INGERSOLL 3010303 Square 45.0°, Chamfer Mill, Back Chamfer End Mill Weldon 0.7500 Positive 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Chamfer Mill, Back Chamfer
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style SH
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Dimensions & Sizing
Overall Length 3.5000 88.90MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 1
Tool Dia 1.0000 25.40MM
Insert Size Ic 9
Geometry & Angles
Cutting Edge Angle 45.0°
Performance & Capacity
Cut Dia Min 0.5000 12.70MM - 1/2
Depth Of Cut Max 0.2300
Cut Dia Max 1.0000 25.40MM
Materials & Finish
Tool Material Steel
