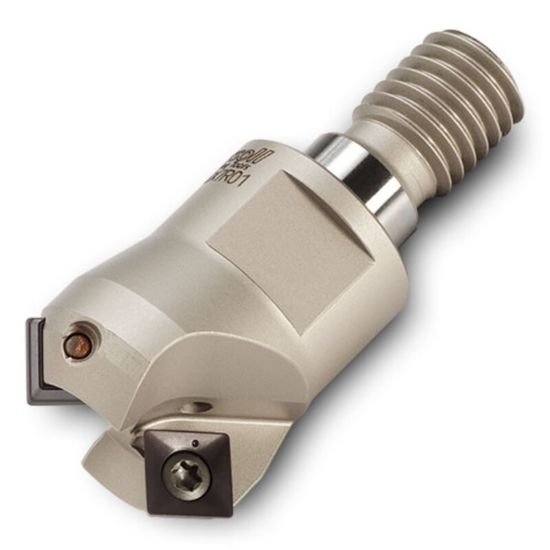

Picture of Ingersoll 15N1E-10012X7R01 Milling Cutter 45.0° 1.000 ScrewM12 2 Flute Coolant 0.2 Max DOC

Ingersoll 15N1E-10012X7R01 Milling Cutter 45.0° 1.000 ScrewM12 2 Flute Coolant 0.2 Max DOC

Part Number: ING3012753 ISO: 15N1E-10012X7R01 ANSI:15N1E-10012X7R01
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008763
Vendor: Sussex Tool and Supply
$362.13

Description

INGERSOLL 3012753 Square 45.0°, Chamfer Mill, Back Chamfer Thread On SCREWM12 Positive 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Chamfer Mill, Back Chamfer
Coolant Thru Thru Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type General Purpose
Insert Style SD
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Dimensions & Sizing
Flutes/Inserts 2
Tool Dia 1.0000 25.40MM
Insert Size Ic 9
Geometry & Angles
Cutting Edge Angle 45.0°
Performance & Capacity
Cut Dia Min 0.5780 14.68MM
Depth Of Cut Max 0.2000
Cut Dia Max 1.0000 25.40MM
Materials & Finish
Tool Material Steel
