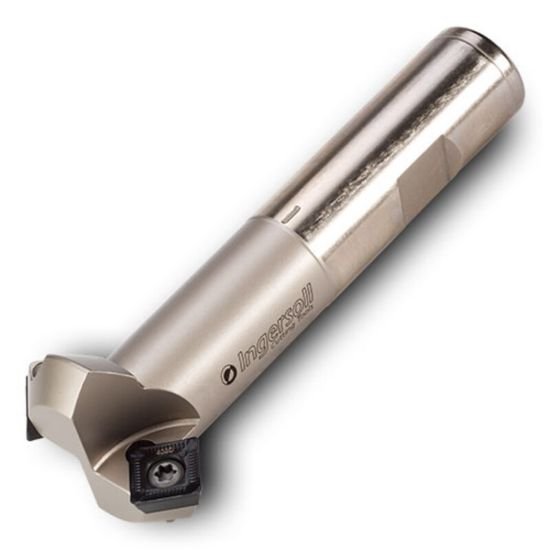

Picture of Ingersoll 15L1G-1502084R01 Milling Cutter 75.0° 1.500 Weldon 0.7500 2 Flute 0.39 Max DOC 4.000 OAL

Ingersoll 15L1G-1502084R01 Milling Cutter 75.0° 1.500 Weldon 0.7500 2 Flute 0.39 Max DOC 4.000 OAL

Part Number: ING3009633 ISO: 15L1G-1502084R01 ANSI:15L1G-1502084R01
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$352.80
SKU: 1008732

Description

INGERSOLL 3009633 Square 75.0°, Chamfer Mill End Mill Weldon 0.7500 Positive 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style SH
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 11
Geometry & Angles
Cutting Edge Angle 75.0°
Performance & Capacity
Cut Dia Min 1.3000 33.02MM
Depth Of Cut Max 0.3900
Cut Dia Max 1.5000 38.10MM - 1-1/2
Materials & Finish
Tool Material Steel
