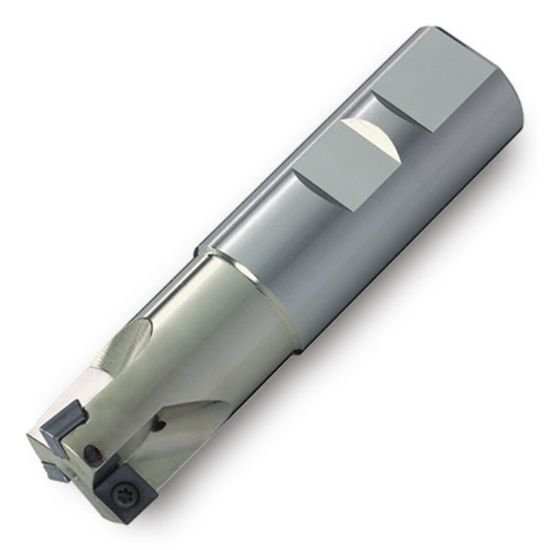

Picture of Ingersoll 15J1E-1003580R01 Milling Cutter 90.0° 1.000 Cylindrical1.0000 2 Flute Coolant 0.31 Max DOC 5.750 OAL

Ingersoll 15J1E-1003580R01 Milling Cutter 90.0° 1.000 Cylindrical1.0000 2 Flute Coolant 0.31 Max DOC 5.750 OAL

Part Number: ING3012733 ISO: 15J1E-1003580R01 ANSI:15J1E-1003580R01
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1008753

Description

INGERSOLL 3012733 Square 90.0°, End Mill End Mill Cylindrical 1.0000 Positive 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style SD
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Dimensions & Sizing
Overall Length 5.7500 146.05MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 1.0000 25.40MM
Insert Size Ic 8
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.0000 25.40MM
Depth Of Cut Max 0.3100
Max Ramp Angle 1.50°
Materials & Finish
Tool Material Steel
