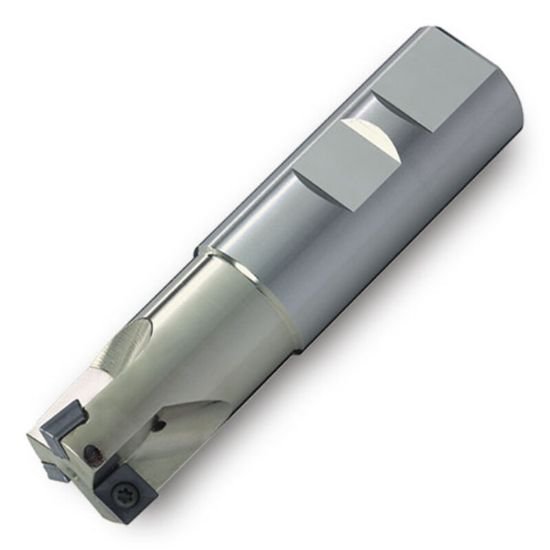

Picture of Ingersoll 15J1E-0703084R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 2 Flute Coolant 0.31 Max DOC 5.000 OAL

Ingersoll 15J1E-0703084R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 2 Flute Coolant 0.31 Max DOC 5.000 OAL

Part Number: ING3012732 ISO: 15J1E-0703084R01 ANSI:15J1E-0703084R01
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1008752

Description

INGERSOLL 3012732 Square 90.0°, End Mill End Mill Weldon 0.7500 Positive 0.7500 19.05MM - 3/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style SD
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Dimensions & Sizing
Overall Length 5.0000 127.00MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 0.7500 19.05MM - 3/4
Insert Size Ic 8
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.3100
Max Ramp Angle 2.50°
Materials & Finish
Tool Material Steel
