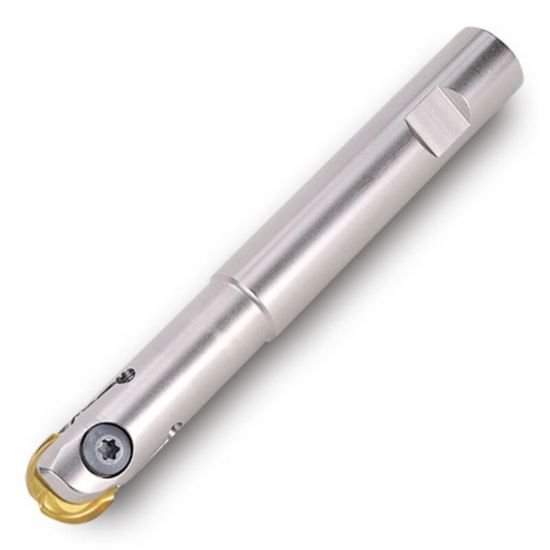

Picture of Ingersoll 12W7V-0704084R01 Milling Cutter 0.750 Weldon 0.7500 2 Flute 0.37 Max DOC 6.000 OAL

Ingersoll 12W7V-0704084R01 Milling Cutter 0.750 Weldon 0.7500 2 Flute 0.37 Max DOC 6.000 OAL

Part Number: ING3005701 ISO: 12W7V-0704084R01 ANSI:12W7V-0704084R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1008707
Vendor: Sussex Tool and Supply
$0.00
INGERSOLL 3005701 Ball Mill End Mill Weldon 0.7500 Positive 0.7500 19.05MM - 3/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Ball Mill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 0.7500 19.05MM
Overall Length 6.0000 152.40MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 0.7500 19.05MM - 3/4
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application Finishing, Roughing, Semi Finishing
Insert Style NC
Insert Shape/Cutter Pocket Shape Other
Insert Type Positive
Insert Size Ic 19
Cut Dia Min 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.3700
